Ball Bearing GTB2265VKLR Billet Wheel Hybrid Turbo vacuum converted and welded onto stock 1.9 2.0TDI

1,249.001,399.00

Clear

Description

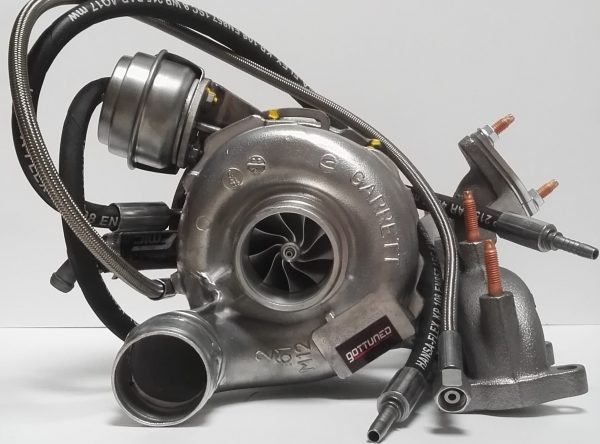

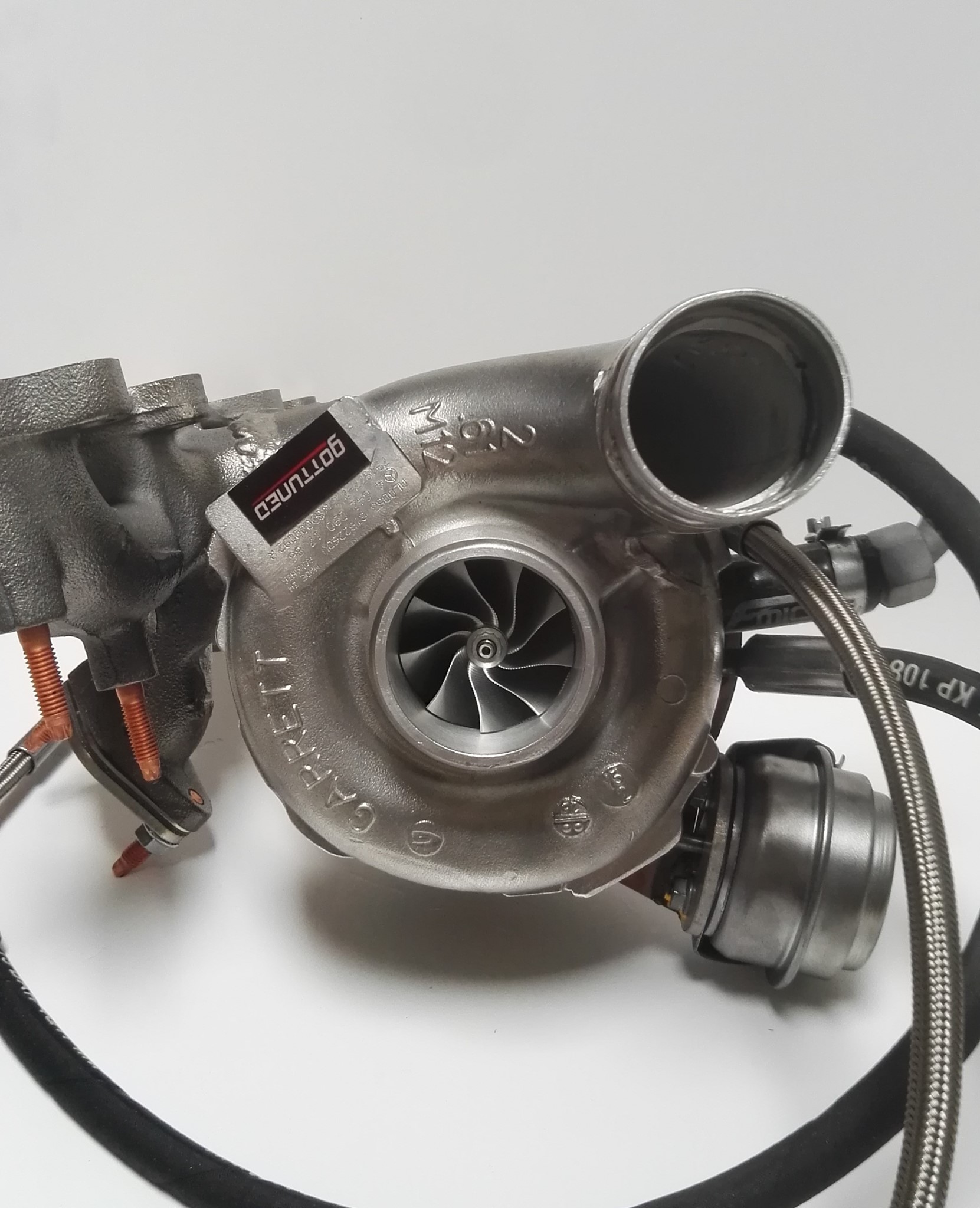

Ceramic Ball Bearing GTB2265VKLR hybrid built using 6+6 blades Billet Wheel GEN I or 9+0 blades Billet Wheel GEN II, based on turbocharger from Mercedes 3.0 CDI V6 is the ultimate choice for the 1.9 & 2.0 TDI for someone looking for a fast driver.

GotTuned’s GTB2265VKLR Ball Bearing hybrid turbo is a vacuum converted turbo with a manifold from VAG 1.9TDI, 2.0TDI so that it fits a majority of transverse and longitudinal engines with following codes:

BKD, AZV, BKP, ECE, PDE, BSY, ALH, ASV, ASZ, ARL, BLT, BPX, AHF, ARL, ATD, AVK, AUY, AJM, AVB, AJM, AHH, ATJ, AFN, AWX, AFV, BGW, BLB, BPW, etc.

What’s so special about this one?

1. Fast spool thanks to genuine Garrett ceramic Ball Bearings and Billet Compressor Wheels.
2. Higher air-fuel ratio and higher peak torque at low engine speeds.
3. Lower manifold pressures at high RPMs.
4. 3rd generation Variable Nozzle Turbine.
5. We sell this hybrid with VKLR installation kit including:

– the oil line feed with oil restrictor,
– the oil line return,
– the water line feed,
– the water line return,
– the downpipe flange.

6. Ceramic Genuine Garrett Ball Bearings.
7. Oil + water cooling.
8. Precisely VNT adjustment.

The four things needed to install our GTB2265VKLR are as follows:

– modification of your current Downpipe (flange for 1.9/2.0 TDI is included in the kit!),
– modification of pipes going to the compressor housing,
– modification of the oil line return,
– water lines installation (from heating coil go 2 water lines – you can connect with them).

The turbo is meant to work with ~320-340HP at 36-38PSI of boost. In order to reach that level of power you need to adjust your fuel, exhaust and cooling systems as well.

Compressor WheelTop BoostTop HP
GEN I Billet 65mm 6+6 blades Wheel36PSI/2.4 bar320HP
GEN II Billet 65mm 9+0 blades Wheel38PSI/2.6bar340HP

The newest second generation of Billet Compressor Wheels allows to get + ~6-10% more Horse Power than GEN I and makes the spool quicker!



When it comes to the fuel injectors, we recommend our custom 0,260 VP Injectors (550,00 EURO), or FIRAD HF120 PD Injectors (1160,00 EURO), depending on the stock fuel system. These parts are available on demand.


Please tell us which vehicle and manifold the turbocharger will be fitted into and we will set up the turbo accordingly. We need usually ~ 10 working days to send this turbocharger.

We are able to do electronic actuator conversion in GTB and GTD series as well ( BorgWarner/KKK and Garrett/Honeywell). Ask about details.




Additional information

Compressor Wheel

GEN I Billet 65mm 6+6 blades, GEN II Billet 65mm 9+0 blades
